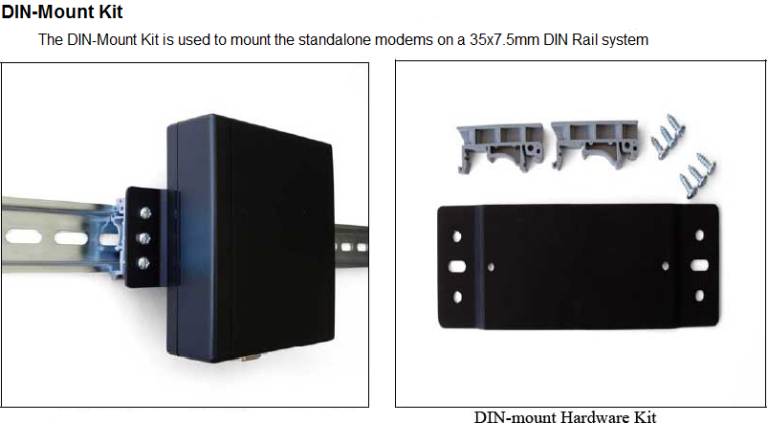

The Data Connect IG-DIN Mount Kit

Installation

Installing the DIN rail mounting kit:
1. Install the two DIN rail mounting clips onto both ends of the mounting brackets with the screws provided
2. Place the modem upside down on a desk or table top
3. Remove the two screws holding the top of the bottom cover of the plastic enclosure
4. Place the mounting bracket on top of the bottom cover with the two mounting holes aligned with the mounting clips facing upward
5. Attached the mounting bracket securely to the bottom cover with two screw removed from step 3
6. Install the modem onto the DIN rail bracket by pushing the clips firmly to latch onto the DIN rail
